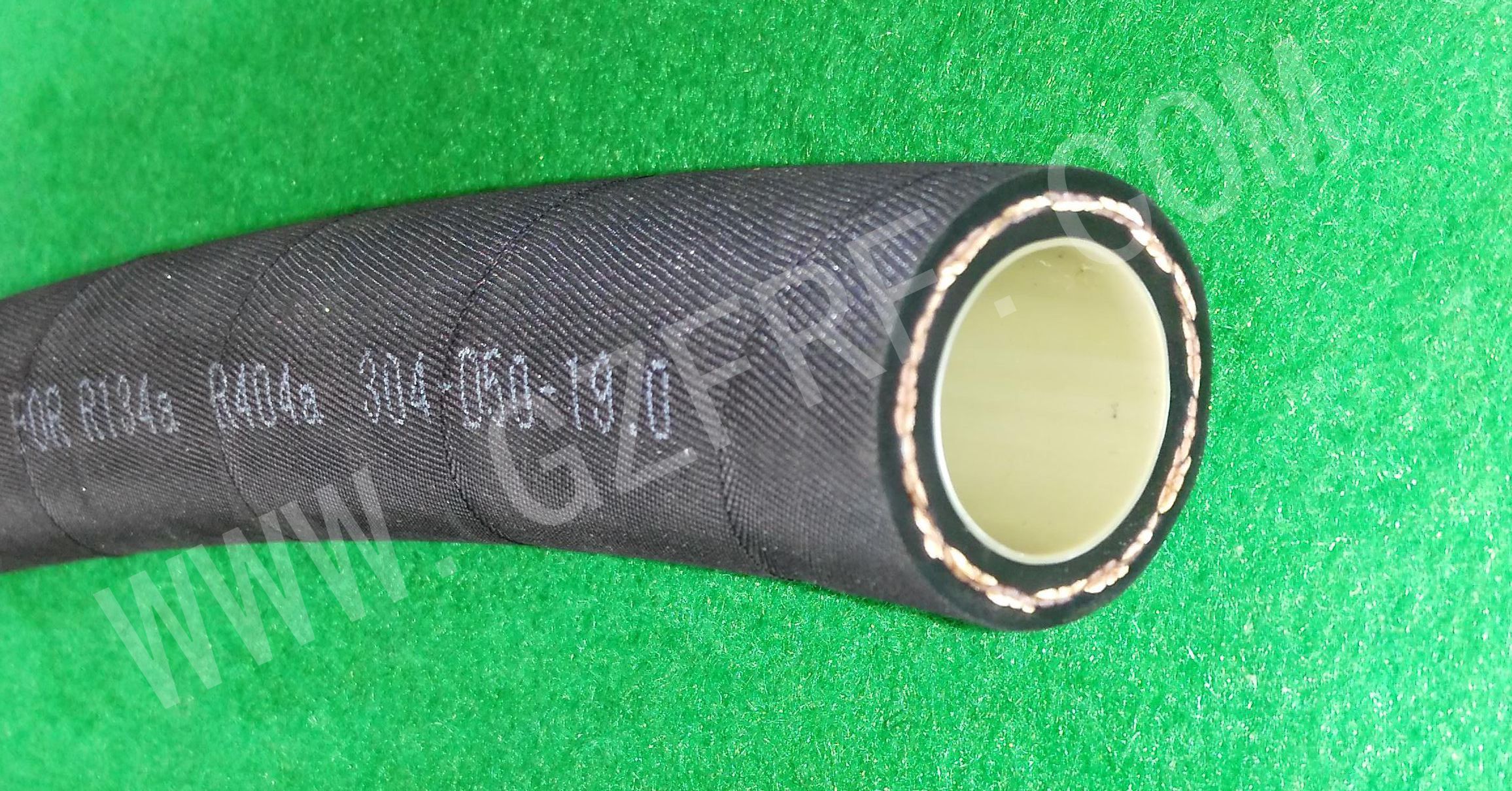

Construction: Hose is by an nylon alloy inner layer, middle rubber layer, fiber reinforcement layer and weather resistant rubber cover.
Application cryogen: R134a 、R404a
Appearance: Black surface with lines of nylon fabric wrapper 。
Working temperature: -40℃～+140℃;
Standard :Standard is SAE J2064.
|
产品代号 |
软管内径 |
软管外径 |
壁厚 |
工作压力 |
最小爆破压力 |
最小弯曲半径 |
|
I.D |
O.D |
Wall |
W.P |
min B.P |
min B.R |
|
mm |
mm |
mm |
MPa |
MPa |
mm |
|
304-D50-8 |
8.2 |
+0.3 |
16.0 |
+0.0 |
4 |
3.5 |
18.0 |
60 |
|
-0.0 |
-0.3 |
|
304-D50-10.7 |
10.7 |
+0.3 |
18.8 |
+0.0 |
4.1 |
3.5 |
18.0 |
75 |
|
-0.0 |
-0.3 |
|
304-D50-12.7 |
12.7 |
+0.3 |
21.5 |
+0.0 |
4.4 |
3.5 |
18.0 |
85 |
|
-0.0 |
-0.3 |
|
304-D50-16.1 |
16.1 |
+0.4 |
24.1 |
+0.0 |
4 |
3.5 |
18.0 |
95 |
|
-0.0 |
-0.3 |
|
304-D50-19 |
18.5 |
+0.5 |
27.5 |
+0.0 |
4.5 |
3.5 |
15.0 |
110 |
|
-0.0 |
-0.5 |
NOTE: Our products will be ceaseless to improve ,So actual situation maybe different part of the data, Our company will retained without advance notice the rights |
