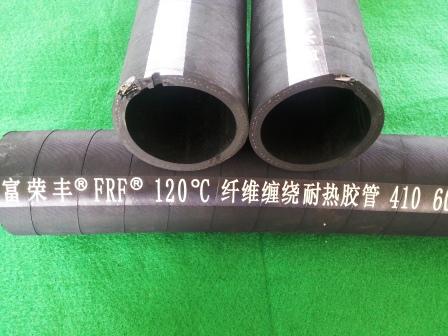

410 HEAT RESISTANT HOSE

Construction: 1. Made from special rubber with excellent oil- and weather-resistance,

Reinforced with spiral steel wire and high-strength fibre;

              2. Hoses applicable for the equipment fixs and uses in narrow space for

its flexibility,portability and small bending radius.

Applications: Applied to deliver saturated steam and superheated water.

Such as :air compressor…

Working temperature：Lower than 120℃

Safety factor：3.

Appearance：Black surface with lines of nylon fabric wrapper.

Reference Standard：

型 号     TYPE	软管内径		参考外径	层 数	工作压力		最小爆破压力		最大长度
	I.D		O.D		W.P		Min B.P		Max Length
	in	mm	mm	S	Mpa	Psi	Mpa	Psi	m
410-6002-1.0	2-3/8	60	75	2	1.0	145	4.0	580	20
410-6402-1.0	2-1/2	64	80	2	1.0	145	4.0	580	20
410-7602-1.0	3	76	95	2	1.0	145	4.0	580	20

Note:

Hoses of more specifications or working pressure grades unlisted in the table could be meet your needs
