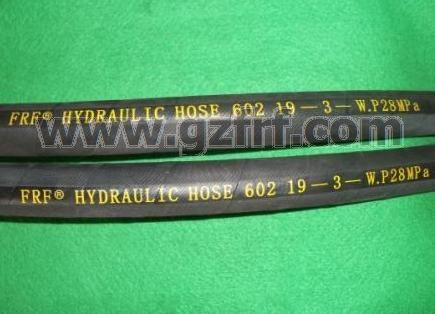

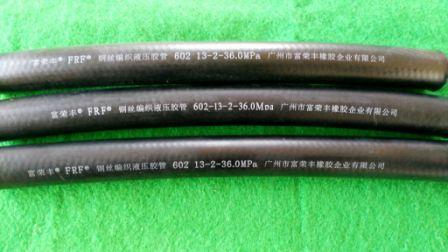

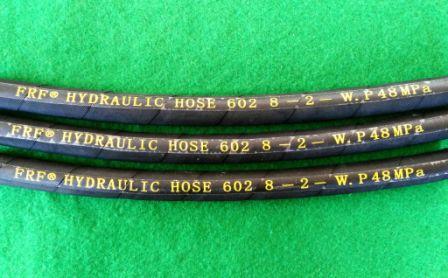

Construction: With an oil-resistant inner, 1～3 layers of wire braid and an
oil- and weather-resistant rubber cover.
Applications: Applied to carry hydraulic fluids such as glycol、hydraulic fluid、
fuels、lubricant、emulsified liquid、hydrocarbons etc.
Working temperature：–40℃～+100℃.
Safety factor：2.5.
Appearance：Black surface with lines of nylon fabric wrapper or black smooth surface
Reference Standard：Made in conformity with MT 98 and Standard Q/（HG4）JGF1
|
型 号
TYPE |
软管内径
I.D |
增强层外径
W.D |
软管外径
O.D |
最大工作压力
Max W.P |
最小爆破压力
Min B.P |
最小弯曲半径
Min B.R |
|
in |
mm |
mm |
mm |
Mpa |
Mpa |
mm |
|
602-0603 |
1/4 |
6±0.4 |
15.0 |
18.2 |
60.0 |
150.0 |
100 |
|
602-0803 |
5/16 |
8±0.4 |
17.4 |
20.2 |
50.0 |
125.0 |
115 |
|
602-1003 |
3/8 |
10±0.4 |
19.4 |
22.3 |
45.0 |
112.0 |
130 |
|
602-1303 |
1/2 |
13±0.4 |
23.0 |
26.2 |
40.0 |
100.0 |
180 |
|
602-1603 |
5/8 |
16±0.4 |
26.2 |
39.2 |
35.0 |
87.5 |
205 |
|
602-1903 |
3/4 |
19±0.4 |
29.2 |
32.4 |
28.0 |
70.0 |
240 |
|
602-2203 |
7/8 |
22±0.4 |
32.2 |
35.2 |
25.0 |
62.5 |
280 |
|
602-2503 |
1 |
25±0.5 |
35.6 |
39.0 |
24.0 |
60.0 |
300 |
|
602-3203 |
1-1/4 |
32±0.5 |
42.8 |
45.8 |
19.0 |
47.5 |
420 |
|
602-3803 |
1-1/2 |
38±0.5 |
49.3 |
53.0 |
15.0 |
37.5 |
500 |
|
602-4503 |
1-3/4 |
45±0.6 |
56.6 |
59.6 |
12.0 |
36.0 |
550 |
|
602-5103 |
2 |
51±0.6 |
62.6 |
65.6 |
10.0 |
30.0 |
630 |
|
