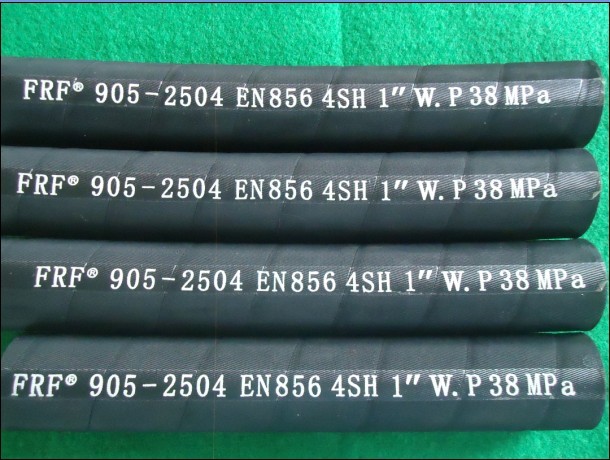

Construction: Consisting of an oil-resistant inner, 4 spirals of wire reinforcement and an oil-resistant, weather-resistant rubber cover.
Applications: Suitable to deliver hydraulic fluids such as glycol、fuels、lubricant、emulsified liquid、hydrocarbons etc.
Working temperature：–40℃～+100℃.
Safety factor：4.
Appearance：Black surface with lines of nylon fabric wrapper.
Reference Standard：EN856 4SH.
|
型 号 |
软管内径 |
增强层
外径
W.D |
软管
外径
O.D |
最大工作
压力
Max.W.P |
最小爆破
压力
Min B.P |
最小
弯曲
半径
Min B.R |
|
I.D |
|
公内径 |
最小 |
最大 |
|
TYPE |
Nominal I.D |
Ｍin |
Ｍax |
|
in |
mm |
mm |
ｍｍ |
mm |
mm |
Bar |
MPa |
Bar |
MPa |
mm |
|
905-1904 |
3/4 |
19 |
18.6 |
19.8 |
28.6 |
31.8 |
420 |
42.0 |
1680 |
168.0 |
280 |
|
905-2504 |
1 |
25 |
25.0 |
26.4 |
35.7 |
39.3 |
380 |
38.0 |
1520 |
152.0 |
340 |
|
905-3204 |
1-1/4 |
31 |
31.4 |
33.0 |
42.8 |
46.8 |
325 |
32.5 |
1300 |
130.0 |
460 |
|
905-3804 |
1-1/2 |
38 |
37.7 |
39.3 |
49.6 |
53.3 |
290 |
29.0 |
1160 |
116.0 |
560 |
|
905-5104 |
2 |
51 |
50.4 |
52.0 |
64.2 |
68.0 |
250 |
25.0 |
1000 |
100.0 |
700 | |
