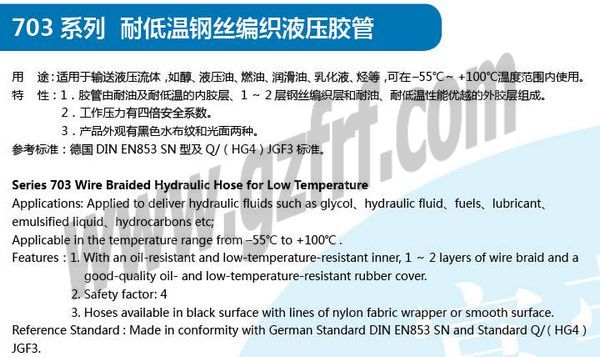

Series 703
low temperature resistant wire braided hydraulic hose-55 ¡ãC
Application: Suitable for conveying hydraulic fluids, such as alcohol, hydraulic oil, lubricating oil, emulsion, etc.
Structural features: The hose consists of oil-resistant and low-temperature resistant inner glue layer, one, two or three layers of high-strength wire braiding reinforcement layer and oil-resistant weather-resistant and low-temperature resistant outer glue layer.
Working temperature: -55 ¡ãC ~ + 100 ¡ãC.
Safety factor: 2.5 ~ 4 times .

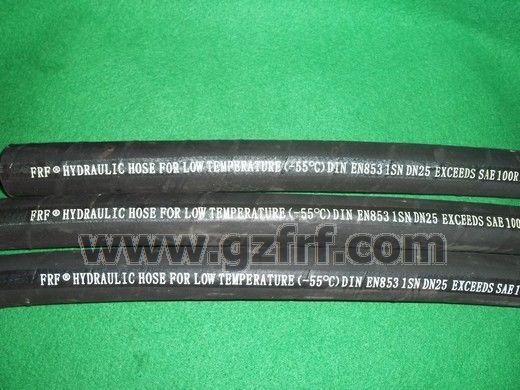

Product appearance: black, with cloth pattern and smooth surface.
Reference standard: GB/T3683(series 601) , Q/GZFRF001-2020 Enterprise Standard (series 602) , EN853 standard (series 618)

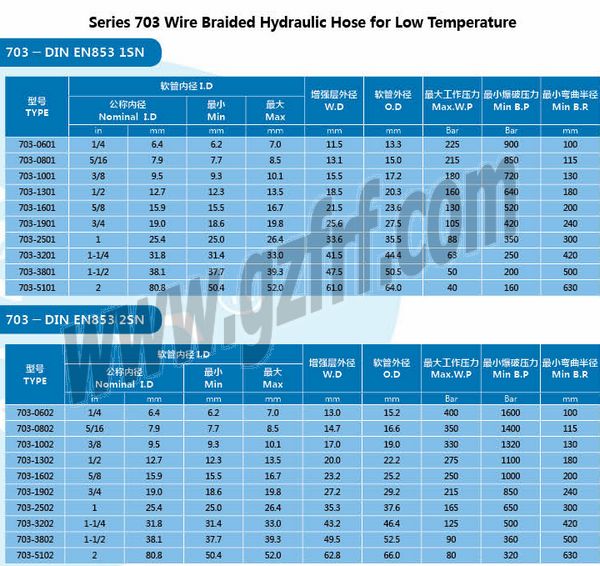

Product Size: See the size of 601,602 and 618 series hose specifications for details.
|
