Applications: 1. Used for sand blasting and rust eliminating on the surface of metal
parts with wind presssure.
2. Used for the delivery of both wet and dry sand in the process 、
of buffing.
Features: 1. Made from special rubber with excellent wear-resistance;
2. Its chemical-fiber-bound casing ply makes it light in weight;

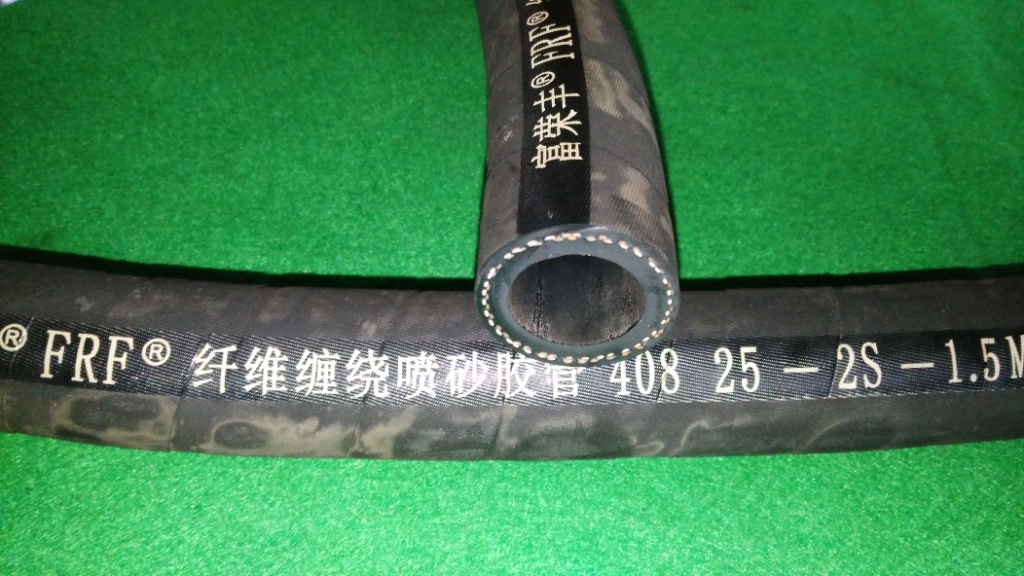

3. Hoses available in black with surface with lines of nylon
fabric wrapper;
4. Safety factor: 4
|
In conformity with Standard HG/T2192-1991 (the standard for rubber hoses for sand blasting ). |
|
型 号 TYPE |
软管内径 |
参考外径 |
层 数 |
工作压力 |
最小爆破压力 |
最大长度 |
参考重量 |
|
I.D |
O.D |
W.P |
Min B.P |
Max Length |
W.T |
|
in |
mm |
mm |
S |
Mpa |
Psi |
Mpa |
Psi |
m |
kg/m |
|
408-1302-1.0 |
1/2 |
13 |
25.5 |
2 |
1.0 |
145 |
4.0 |
580 |
30 |
0.36 |
|
408-1602-1.0 |
5/8 |
16 |
28.5 |
2 |
1.0 |
145 |
4.0 |
580 |
30 |
0.45 |
|
408-1902-1.0 |
3/4 |
19 |
31.5 |
2 |
1.0 |
145 |
4.0 |
580 |
30 |
0.53 |
|
408-2202-1.0 |
7/8 |
22 |
34.5 |
2 |
1.0 |
145 |
4.0 |
580 |
30 |
0.62 |
|
408-2502-1.0 |
1 |
25 |
38 |
2 |
1.0 |
145 |
4.0 |
580 |
30 |
0.82 |
|
408-3202-1.0 |
1-1/2 |
32 |
46 |
2 |
1.0 |
145 |
4.0 |
580 |
20 |
1.03 |
|
408-3802-1.0 |
1-1/2 |
38 |
52 |
2 |
1.0 |
145 |
4.0 |
580 |
20 |
1.23 |
|
408-4502-1.0 |
1-3/4 |
45 |
59 |
2 |
1.0 |
145 |
4.0 |
580 |
20 |
1.48 |
|
Note: Hoses with more specifications or working pressure grades unlisted in the table could be designed and produced to meet your needs.
| |
