Applications: 1. Used for the suction and discharge of hydraulic fluid such as alcohol,hydraulic
oil,fuel oil,lubricating oil and emulsified oil;
2. Used in the temperature ranging from -40℃ to +100℃.
Features: 1. Made from special rubber with excellent oil-resistance and weather-resistance;
2. Reinforced with spiral steel wire and high-strength fibre;
3. Hoses applicable for the equipment fixs and uses in narrow space for its flexibility,portability and small
bending radius.

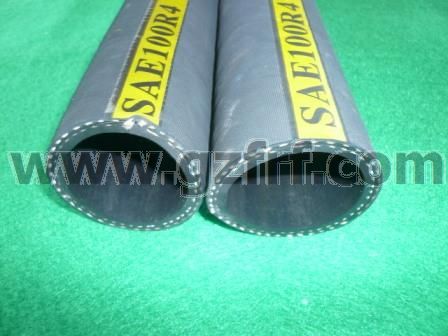

In conformity with the American Standard SAE J517 100R4.
|
型号 |
软管内径 |
参考 外径 |
|
工作压力 |
最小爆破压力 |
最大长度 |
最小弯曲半径 |
|
TYPE |
I.D |
O.D |
层数S |
W.P |
Min B.P |
Max LENGTH |
Min B.R |
|
|
in |
mm |
mm |
Mpa |
Psi |
Mpa |
Psi |
m |
mm |
|
409-3202-1.5 |
1-1/4 |
32 |
44 |
2 |
1.5 |
218 |
6.0 |
872 |
20 |
200 |
|
409-3802-1.0 |
1-1/2 |
38 |
50 |
2 |
1.0 |
145 |
4.0 |
580 |
20 |
255 |
|
409-4502-1.0 |
1-3/4 |
45 |
57 |
2 |
1.0 |
145 |
4.0 |
580 |
20 |
270 |
|
409-5102-0.7 |
2 |
51 |
67 |
2 |
0.7 |
102 |
2.8 |
408 |
20 |
300 |
|
409-6404-0.7 |
2-1/2 |
64 |
80 |
2 |
0.7 |
102 |
2.8 |
408 |
20 |
355 |
Note: Hoses with more specifications or working pressure grades unlisted in the table could be designed and produced to meet your needs. |
