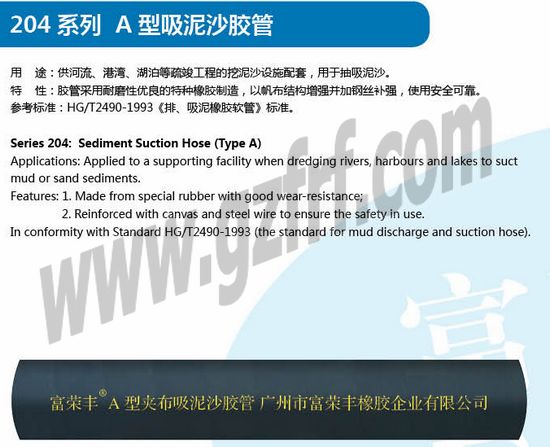

Series 204A: Sand Suction Hose (Type A)

Applications: It is suitable for dredging dredger in river, harbor and lake under the ambient temperature of -20 ° C ~ + 40 ° C.

Features: The hose is made of special rubber with excellent abrasion resistance, and is made of canvas and

reinforced with spiral steel wire.

Reference standard：HG/T2490-2023 《Rubber hoses and hose assemblies,wire or textile reinforced,for dredging applications-Specification》.

TYPE	I.D		Layer	D.E.L	O.D	Max. Length
	mm	In	P	mm	mm	m
204A-7603	76	3	3	100	95	20
204A-7604	76	3	4	100	96	20
204A-10204	102	4	4	130	125	10
204A-10205	102	4	5	130	126	10
204A-10206	102	4	6	130	127	10
204A-11405	114	4-1/2	5	130	141	10
204A-11406	114	4-1/2	6	130	142	10
204A-12705	127	5	5	130	155	10
204A-12706	127	5	6	130	156	10
204A-15206	152	6	6	150	182	10
204A-15207	152	6	7	150	183	10
204A-15208	152	6	8	150	184	10
204A-16507	165	6-1/2	7	150	196	10
204A-17807	178	7	7	150	212	10
204A-20308	203	8	8	200	240	10
204A-25410	254	10	10	200	303	10
204A-30510	305	12	10	230	357	10
204A-35612	356	14	12	230	415	10
204A-40612	406	16	12	250	465	10

Note:1、 Hoses of more specifications (of flared type hoses included) unlisted in the table could be designed and produced to meet your needs.

2、The product will be continuously improved, the actual situation may be different from this information, the company reserves the right to change without prior notice.
