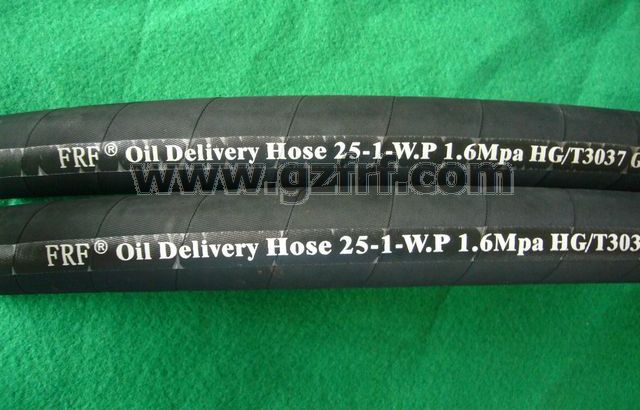

Construction: Consisting of an oil-resistant inner, 1 layer of wire braid and an oil-resistant, weather-resistant rubber cover.

Applications: Suitable to metrically deliver petroleum-based fuels (including oxidized fuel: with maximum mixture of 15% oxygen compound)、lubricant and other mineral oil.

Working temperature：– 40℃~ +55℃.

Safety factor：3.

Appearance：Black surface with lines of nylon fabric wrapper or black smooth surface.

Reference Standard：Made in conformity with Standard HG/T 3037.

型  号 TYPE	软管内径 I.D	软管外径 O.D	增强层外径 W.D	最大工作压力 Max W.P	最小爆破压力 Min B.P	最小弯曲半径 Min B.R
	mm	mm	mm	MPa	MPa	mm
609 1601	16±0.4	26.0±1.0	21.5±0.5	1.6	4.8	80
609-1901	19±0.4	30.0±1.0	25.5±0.5	1.6	4.8	100
609-2501	25±0.5	38.0±1.0	33.0±0.5	1.6	4.8	150
609-3201	32±0.5	45.0±1.0	40.5±0.8	1.6	4.8	175
609-3801	38±0.5	50.0±1.0	45.5±0.8	1.6	4.8	225
