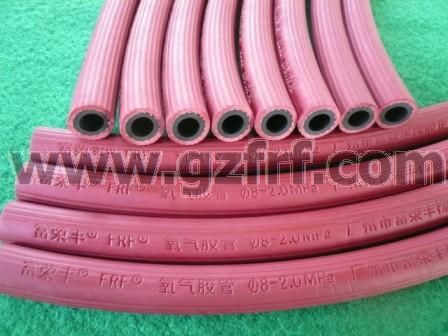

Series 401: Oxygen Hose
Application: For conveying oxygen at normal temperature, suitable for gas welding and cutting or similar operations.
Features:Chemical fiber winding structure is used for skeleton layer, the tube body is soft and light, bending resistance is good. The hose has good aging resistance. High pressure, triple Factor of safety.
Working temperature: –20℃～+60℃.
Product Appearance:Hoses available either in blue or red with either surface with lines of nylon fabric wrapper or lineolate surface.
Reference Standard: GB/T2550-2016.
|
TYPE |
I.D |
O.D |
Layer |
W.P |
Min. B.P |
Max. Length |
|
mm |
in |
mm |
S |
MPa |
MPa |
m |
|
401-0602-2.0 |
6 |
1/4 |
13.5 |
2 |
2.0 |
6.0 |
100 |
|
401-0802-2.0 |
8 |
5/16 |
15.5 |
2 |
2.0 |
6.0 |
100 |
|
401-1002-2.0 |
10 |
3/8 |
17.5 |
2 |
2.0 |
6.0 |
30 |
|
401-1302-2.0 |
13 |
1/2 |
21.5 |
2 |
2.0 |
6.0 |
30 |
|
401-1602-2.0 |
16 |
5/8 |
25.5 |
2 |
2.0 |
6.0 |
30 |
|
401-1902-2.0 |
19 |
3/4 |
28.5 |
2 |
2.0 |
6.0 |
30 |
|
401-2502-2.0 |
25 |
1 |
35.5 |
2 |
2.0 |
6.0 |
30 |
Note:
1.Specifications not included in the table can be designed separately according to customer requirements.
2.The product will be continuously improved, the actual situation may be different from this information, the company reserves the right to change without prior notice.
