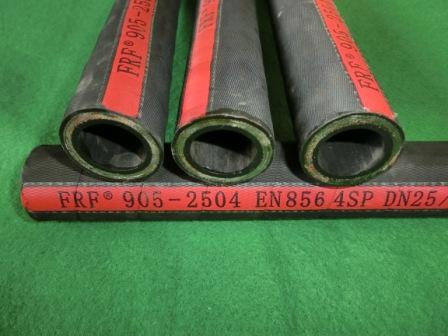

Reference Standard：EN856 4SP

型  号 TYPE	Inside				Wire.Ourside	Outside	Max Working Pressure		Min Burst Pressure		Min Bend Radius
	Nominal  I D		mm
	in	mm	mm		mm	mm	Psi	Mpa	Psi	Mpa	mm
905-1004	3/8	10	9.5	+0.5	17.5±0.4	21.4±0.8	6450	44.5	25800	178.0	180
				-0.4
905-1304	1/2	12	12.7	+0.6	20.2±0.4	24.6±0.8	6000	41.5	24000	166.0	230
				-0.4
905-1604	5/8	16	15.9	+0.6	23.8±0.4	28.2±0.8	5000	35.0	20000	140.0	250
				-0.4
905-1904	3/4	19	19.9	+0.6	28.2±0.4	32.2±0.8	5000	35.0	20000	140.0	300
				-0.4
905-2504	1	25	25.4	+0.8	35.3±0.4	39.7±1.2	4000	28.0	16000	112.0	340
				-0.4
905-3204	1-1/4	31	31.8	+1.0	46.0±0.5	50.8±1.6	3000	21.0	12000	84.0	460
				-0.4
905-3804	1-1/2	38	38.1	+1.0	52.4±0.5	57.2±1.6	2650	18.5	10600	74.0	560
				-0.4
905-5104	2	51	50.8	+1.0	65.3±0.5	69.8±1.6	2360	16.5	9440	66.0	660
				-0.4

Note: Hoses with more specifications or working pressure grades unlisted in the table could be designed and produced to meet your needs.
