Construction: With an oil-resistant inner, 1～2 layers of wire braid and
an oil- and weather-resistant rubber cover.
Applications: Applied to deliver hydraulic fluids such as glycol、hydraulic fluid 、
fuels、lubricant、emulsified liquid、hydrocarbons etc.
Working temperature：–40℃～+<＆#46060;＆#446;>100℃
Safety factor：4.
Appearance：Black surface with lines of nylon fabric wrapper or black smooth surface.
Reference Standard：Made in conformity with German Standard DIN EN853 Type SN
EN853 1SN
|
型 号 |
软管内径 |
增强层
外径
W.D |
软管
外径
O.D |
最大工作
压力
Max.WP |
最小爆破
压力
Min B.P |
最小
弯曲
半径
Min B.R |
|
I.D |
|
公称内径 |
最小 |
最大 |
|
TYPE |
Nominal I.D |
Ｍin |
Ｍax |
|
in |
mm |
mm |
ｍｍ |
mm |
mm |
Bar |
Bar |
mm |
|
618-0601 |
1/4 |
6.4 |
6.2 |
7.0 |
11.5 |
13.3 |
225 |
900 |
100 |
|
618-0801 |
5/16 |
7.9 |
7.7 |
8.5 |
13.1 |
15.0 |
215 |
850 |
115 |
|
618-1001 |
3/8 |
9.5 |
9.3 |
10.1 |
15.5 |
17.2 |
180 |
720 |
130 |
|
618-1301 |
1/2 |
12.7 |
12.3 |
13.5 |
18.5 |
20.3 |
160 |
640 |
180 |
|
618-1601 |
5/8 |
15.9 |
15.5 |
16.7 |
21.5 |
23.6 |
130 |
520 |
200 |
|
618-1901 |
3/4 |
19.0 |
18.6 |
19.8 |
25.6 |
27.5 |
105 |
420 |
240 |
|
618-2501 |
1 |
25.4 |
25.0 |
26.4 |
33.6 |
35.5 |
88 |
350 |
300 |
|
618-3201 |
1-1/4 |
31.8 |
31.4 |
33.0 |
41.5 |
44.4 |
63 |
250 |
420 |
|
618-3801 |
1-1/2 |
38.1 |
37.7 |
39.3 |
47.5 |
50.5 |
50 |
200 |
500 |
|
618-5101 |
2 |
50.8 |
50.4 |
52.0 |
61.0 |
64.0 |
40 |
160 |
630 |

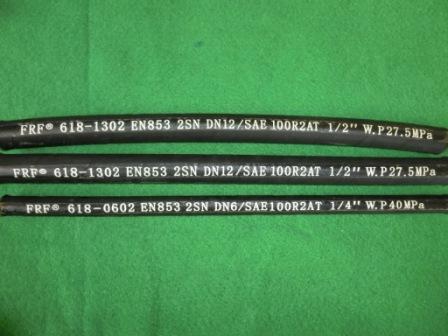

EN853 2SN
|
型 号 |
软管内径 |
增强层
外径
W.D |
软管
外径
O.D |
最大工作
压力
Max.WP |
最小爆破
压力
Min B.P |
最小
弯曲
半径
Min B.R |
|
I.D |
|
公称内径 |
最小 |
最大 |
|
TYPE |
Nominal I.D |
Ｍin |
Ｍax |
|
in |
mm |
mm |
ｍｍ |
mm |
mm |
Bar |
Bar |
mm |
|
618-0602 |
1/4 |
6.4 |
6.2 |
7.0 |
13.0 |
15.2 |
400 |
1600 |
100 |
|
618-0802 |
5/16 |
7.9 |
7.7 |
8.5 |
14.7 |
16.6 |
350 |
1400 |
115 |
|
618-1002 |
3/8 |
9.5 |
9.3 |
10.1 |
17.0 |
19.0 |
330 |
1320 |
130 |
|
618-1302 |
1/2 |
12.7 |
12.3 |
13.5 |
20.0 |
22.2 |
275 |
1100 |
180 |
|
618-1602 |
5/8 |
15.9 |
15.5 |
16.7 |
23.2 |
25.2 |
250 |
1000 |
200 |
|
618-1902 |
3/4 |
19.0 |
18.6 |
19.8 |
27.2 |
29.2 |
215 |
850 |
240 |
|
618-2502 |
1 |
25.4 |
25.0 |
26.4 |
35.3 |
37.6 |
165 |
650 |
300 |
|
618-3202 |
1-1/4 |
31.8 |
31.4 |
33.0 |
43.2 |
46.4 |
125 |
500 |
420 |
|
618-3802 |
1-1/2 |
38.1 |
37.7 |
39.3 |
49.5 |
52.5 |
90 |
360 |
500 |
|
618-5102 |
2 |
50.8 |
50.4 |
52.0 |
62.8 |
66.0 |
80 |
320 |
630 |
