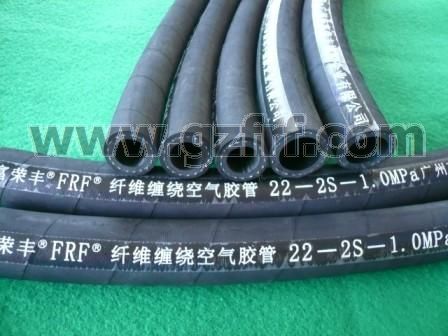

Applications: 1. Used for the delivery of compressed air or inert gases at room temperature;
2. Applicable for power-generating machines and pneumatic tools.
Features: 1. Made from rubber with excellent airtightness;
2. Its chemical-fiber-bound casing ply makes it sturdy, durable in use,and greatly resistant to high pressure;
3. Hoses available in black, yellow, blue or red with surface with lines of nylon fabric wrapper;
4. Safety factor: 4.
In conformity with Standard GB/T1186-2007 (the standard for rubber hose,textile-reinforced,for compressed air).
| 型号 |
软管内径 |
参考外径 |
层数 |
工作压力 |
最小爆破压力 |
最大长度 |
参考重量 |
| TYPE |
I.D |
O.D |
S |
W.P |
Min B.P |
Max（LENGTH） |
W.T |
| |
inch |
mm |
mm |
|
Mpa |
Psi |
Mpa |
Psi |
m |
kg/m |
|
405-0602-1.0 |
1/4 |
6 |
14 |
2 |
1.0 |
145 |
4.0 |
580 |
100 |
0.17 |
| 405-0802-1.0 |
5/16 |
8 |
16 |
2 |
1.0 |
145 |
4.0 |
580 |
100 |
0.22 |
| 405-1002-1.0 |
3/8 |
10 |
18 |
2 |
1.0 |
145 |
4.0 |
580 |
100 |
0.28 |
| 405-1302-1.0 |
1/2 |
13 |
22 |
2 |
1.0 |
145 |
4.0 |
580 |
30 |
0.36 |
| 405-1602-1.0 |
5/8 |
16 |
25 |
2 |
1.0 |
145 |
4.0 |
580 |
30 |
0.45 |
| 405-1902-1.0 |
3/4 |
19 |
28 |
2 |
1.0 |
145 |
4.0 |
580 |
30 |
0.53 |
| 405-2202-1.0 |
7/8 |
22 |
31 |
2 |
1.0 |
145 |
4.0 |
580 |
30 |
0.62 |
| 405-2502-1.0 |
1 |
25 |
35 |
2 |
1.0 |
145 |
4.0 |
580 |
30 |
0.71 |
| 405-3202-1.0 |
1-1/4 |
32 |
43 |
2 |
1.0 |
145 |
4.0 |
580 |
20 |
1.06 |
| 405-3802-1.0 |
1-1/2 |
38 |
49 |
2 |
1.0 |
145 |
4.0 |
580 |
20 |
1.28 |
| 405-4502-1.0 |
1-3/4 |
45 |
56 |
2 |
1.0 |
145 |
4.0 |
580 |
20 |
1.53 |
| 405-5102-1.0 |
2 |
51 |
63 |
2 |
1.0 |
145 |
4.0 |
580 |
20 |
1.70 |
| 405-6404-1.0 |
2-1/2 |
64 |
78 |
4 |
1.0 |
145 |
4.0 |
580 |
20 |
2.42 |
| 405-0602-1.5 |
1/4 |
6 |
14 |
2 |
1.5 |
218 |
6.0 |
872 |
100 |
0.19 |
| 405-0802-1.5 |
5/16 |
8 |
16 |
2 |
1.5 |
218 |
6.0 |
872 |
100 |
0.24 |
| 405-1002-1.5 |
3/8 |
10 |
18 |
2 |
1.5 |
218 |
6.0 |
872 |
100 |
0.30 |
| 405-1302-1.5 |
1/2 |
13 |
22 |
2 |
1.5 |
218 |
6.0 |
872 |
30 |
0.37 |
| 405-1602-1.5 |
5/8 |
16 |
25 |
2 |
1.5 |
218 |
6.0 |
872 |
30 |
0.55 |
| 405-1902-1.5 |
3/4 |
19 |
29 |
2 |
1.5 |
218 |
6.0 |
872 |
30 |
0.56 |
| 405-2202-1.5 |
7/8 |
22 |
32 |
2 |
1.5 |
218 |
6.0 |
872 |
30 |
0.64 |
| 405-2502-1.5 |
1 |
25 |
35 |
2 |
1.5 |
218 |
6.0 |
872 |
30 |
0.73 |
| 405-3202-1.5 |
1-1/4 |
32 |
43 |
2 |
1.5 |
218 |
6.0 |
872 |
20 |
0.91 |
| 405-3802-1.5 |
1-1/2 |
38 |
49 |
2 |
1.5 |
218 |
6.0 |
872 |
20 |
1.10 |
| 405-4504-1.5 |
1-3/4 |
45 |
59 |
4 |
1.5 |
218 |
6.0 |
872 |
20 |
1.76 |
| 405-5104-1.5 |
2 |
51 |
65 |
4 |
1.5 |
218 |
6.0 |
872 |
20 |
1.98 |
| 405-6404-1.5 |
2-1/2 |
64 |
78 |
4 |
1.5 |
218 |
6.0 |
872 |
20 |
2.48 |
| 405-0602-2.0 |
1/4 |
6 |
14 |
2 |
2.0 |
290 |
8.0 |
1160 |
100 |
0.20 |
| 405-0802-2.0 |
5/16 |
8 |
16 |
2 |
2.0 |
290 |
8.0 |
1160 |
100 |
0.25 |
| 405-1002-2.0 |
3/8 |
10 |
18 |
2 |
2.0 |
290 |
8.0 |
1160 |
100 |
0.31 |
| 405-1302-2.0 |
1/2 |
13 |
22 |
2 |
2.0 |
290 |
8.0 |
1160 |
30 |
0.38 |
| 405-1602-2.0 |
5/8 |
16 |
25 |
2 |
2.0 |
290 |
8.0 |
1160 |
30 |
0.47 |
| 405-1902-2.0 |
3/4 |
19 |
28 |
2 |
2.0 |
290 |
8.0 |
1160 |
30 |
0.56 |
| 405-2202-2.0 |
7/8 |
22 |
32 |
2 |
2.0 |
290 |
8.0 |
1160 |
30 |
0.65 |
| 405-2502-2.0 |
1 |
25 |
35 |
2 |
2.0 |
290 |
8.0 |
1160 |
30 |
0.75 |
| 405-3202-2.0 |
1-1/4 |
32 |
43 |
2 |
2.0 |
290 |
8.0 |
1160 |
20 |
1.05 |
| 405-3804-2.0 |
1-1/2 |
38 |
52 |
4 |
2.0 |
290 |
8.0 |
1160 |
20 |
1.48 |
| 405-4504-2.0 |
1-3/4 |
45 |
59 |
4 |
2.0 |
290 |
8.0 |
1160 |
20 |
1.79 |
| 405-5106-2.0 |
2 |
51 |
67 |
6 |
2.0 |
290 |
8.0 |
1160 |
20 |
2.35 |
| 405-6406-2.0 |
2-1/2 |
64 |
80 |
6 |
2.0 |
290 |
8.0 |
1160 |
20 |
2.95 |
Note: Hoses with more specifications or working pressure grades unlisted in the table could be designed and produced to meet your needs.
|
