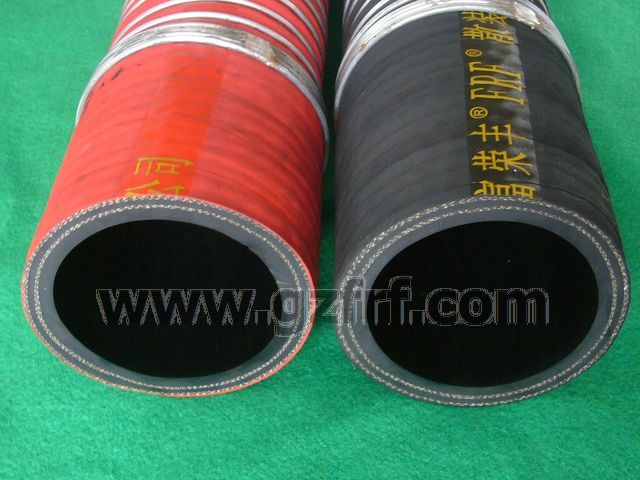

Features:1. Made from special rubber with great wear and heat resistance.

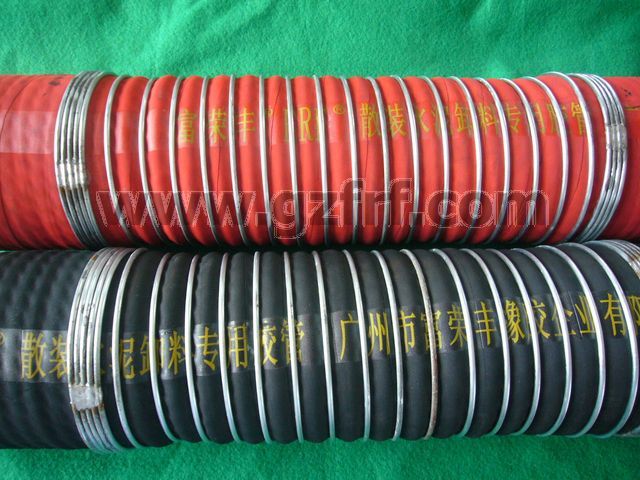

2. There are three types of casing ply:

 ⑴canvas + inner and external steel wire tubes;

         ⑵ canvas + internal steel wire hard pipe;

         ⑶Pure canvas structure hose.

Product Appearance: Black and red, with cloth pattern.

Reference Standard:Implement enterprise standard Q／GZFRF08-2015 《Special rubber tubes for bulk cement powder unloading》.

TYPE	I.D		Layer	D.E.L	O,D	Max.Length
	mm	in	P	mm	mm	m
202-10204	102	4	4	150	125	10
202-11404	114	4-1/2	4	150	137	10
202-12706	127	5	6	150	153	10
202-15206	152	6	6	150	179	10
202-20308	203	8	8	200	234	10

Note:1、 Hoses of more specifications (of flared type hoses included) unlisted in the table could be designed and produced to meet your needs.

2、The product will be continuously improved, the actual situation may be different from this information, the company reserves the right to change without prior notice.
