Construction: With an oil-resistant inner, 1 layer of wire braid and an oil- and weather-resistant rubber cover.

Applications: Applied to metrically deliver petroleum-based fuels (including oxidized fuel: with a maximum mixture of 15% oxygen compound)、lubricant and other mineral oil.

Working temperature：– 40℃~ +55℃.

Safety factor：3.

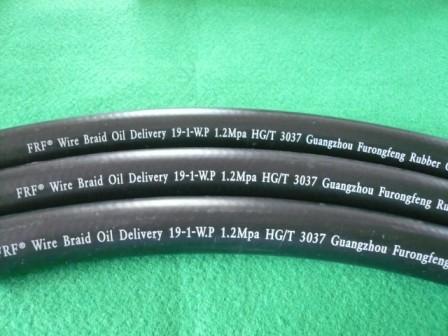

Appearance：Black surface with lines of nylon fabric wrapper or black smooth surface.

Reference Standard：Made in conformity with Standard HG/T 3037

型   号 TYPE	软管内径 I.D	软管外径 O.D	增强层外径 W.D	最大工作压力 Max W.P	最小爆破压力 Min B.P	最小弯曲半径 Min B.R
	mm	mm	mm	MPa	MPa	mm
609-1601	16±0.4	26.0	21.7	1.6	4.8	80
609-1901	19±0.4	30.0	25.2	1.6	4.8	100
609-2501	25±0.5	38.0	33.5	1.6	4.8	150
609-3201	32±0.5	44.0	40.0	1.6	4.8	175
609-3801	38±0.5	50.0	46.0	1.6	4.8	225

Note: Hoses with more specifications or working pressure grades unlisted in the table could be designed and produced to meet your needs.
