Product show >> Wire Hydraulic Hose >> 602 Series wire braided hose

Name	Spec	Size

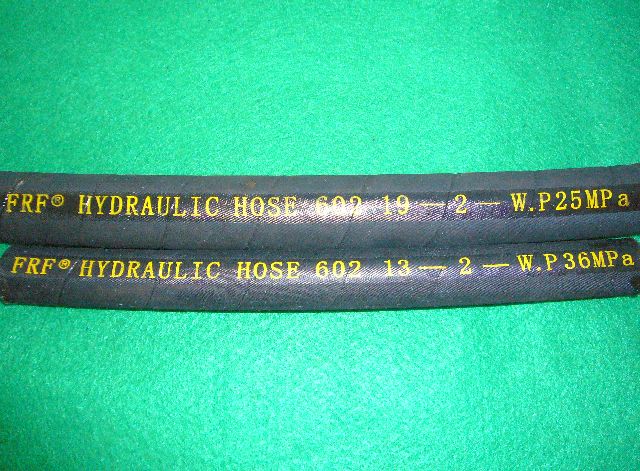

Series of 602# wire hydraulic hoses	φ6mm~φ51mm	1SN、2SN、3SN

Construction: With an oil-resistant inner, 1～3 layers of wire braid and an

oil- and weather-resistant rubber cover.

Applications: Applied to carry hydraulic fluids such as glycol、hydraulic fluid、

fuels、lubricant、emulsified liquid、hydrocarbons etc.

Working temperature：–40℃～+100℃.

Safety factor：2.5.

Appearance：Black surface with lines of nylon fabric wrapper or black smooth surface

Reference Standard：Made in conformity with MT 98 and Standard Q/（HG4）JGF1

型号

TYPE

软管内径

I.D

增强层外径

W.D

软管外径

O.D

最大工作压力

Max W.P

最小爆破压力

Min B.P

最小弯曲半径

Min B.R

in

mm

mm

mm

Mpa

Mpa

mm

602-0601

1/4

6±0.4

11.7

14.8

32.0

80.0

100

602-0801

5/16

8±0.4

13.8

16.6

28.0

70.0

115

602-1001

3/8

10±0.4

15.8

18.8

25.6

64.0

130

602-1301

1/2

13±0.4

19.8

22.2

22.4

56.0

180

602-1601

5/8

16±0.4

22.7

25.5

16.8

42.0

205

602-1901

3/4

19±0.4

25.8

28.8

14.4

36.0

240

602-2201

7/8

22±0.4

28.8

31.8

12.8

32.0

280

602-2501

1

25±0.5

32.3

35.6

11.2

28.0

300

602-3201

1-1/4

32±0.5

39.2

42.5

9.0

22.5

420

602-3801

1-1/2

38±0.5

46.0

49.0

7.0

17.5

500

602-4501

1-3/4

45±0.6

53.0

56.0

5.0

15.0

550

602-5101

2

51±0.6

59.0

62.0

4.0

12.0

630

602-0602

1/4

6±0.4

13.5

16.5

56.0

140.0

100

602-0802

5/16

8±0.4

15.6

18.5

48.0

120.0

115

602-1002

3/8

10±0.4

17.6

20.6

40.0

100.0

130

602-1302

1/2

13±0.4

21.6

24.3

36.0

90.0

180

602-1602

5/8

16±0.4

24.4

27.6

32.0

80.0

205

602-1902

3/4

19±0.4

27.4

30.7

25.0

62.5

240

602-2202

7/8

22±0.4

30.4

33.8

22.0

55.0

280

602-2502

1

25±0.5

34.0

37.5

21.0

52.5

300

602-3202

1-1/4

32±0.5

41.0

44.0

17.0

42.5

420

602-3802

1-1/2

38±0.5

47.5

51.0

12.0

30.0

500

602-4502

1-3/4

45±0.6

54.8

57.8

9.0

27.0

550

602-5102

2

51±0.6

60.8

63.8

8.0

24.0

630

Note: Hoses with more specifications or working pressure grades unlisted in the table could be designed and produced to meet your needs.
